AS3935 Lightning Detection Sensor - Storm Distance Monitor with SPI/I2C Interface (2.4V-5.5V) for Smartphones, Smartwatches & Electronics - Perfect for Weather Stations & Outdoor Safety Devices
$22.34
$29.79
Safe 25%
AS3935 Lightning Detection Sensor - Storm Distance Monitor with SPI/I2C Interface (2.4V-5.5V) for Smartphones, Smartwatches & Electronics - Perfect for Weather Stations & Outdoor Safety Devices
$22.34
$29.79
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
27 people viewing this product right now!
SKU: 96099416
Guranteed safe checkout
Description

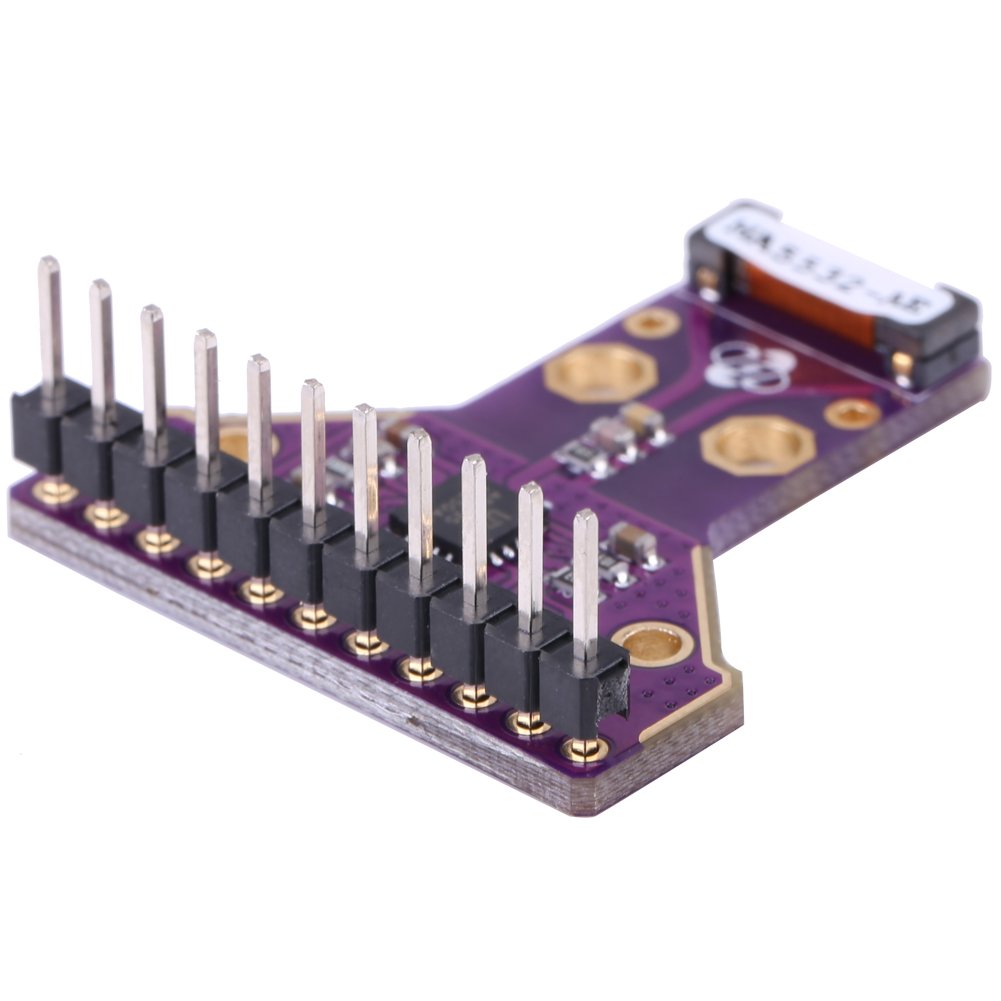

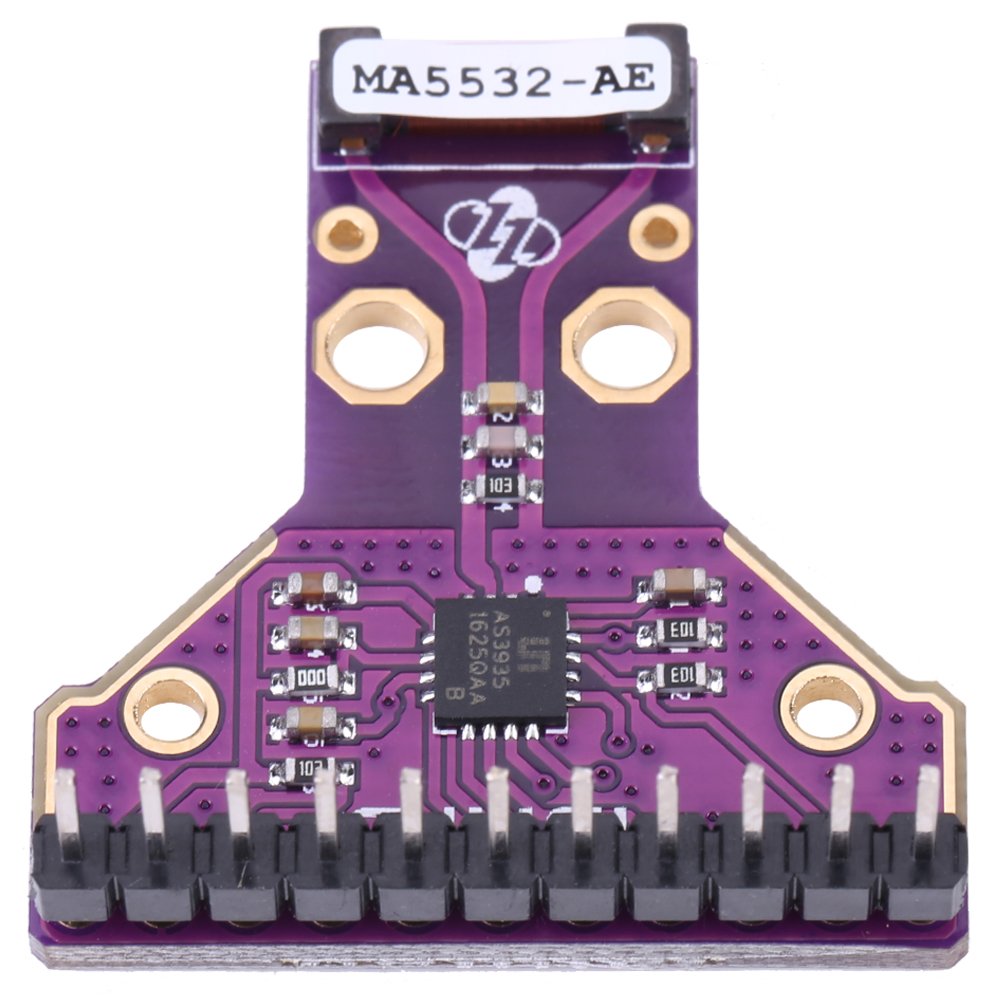

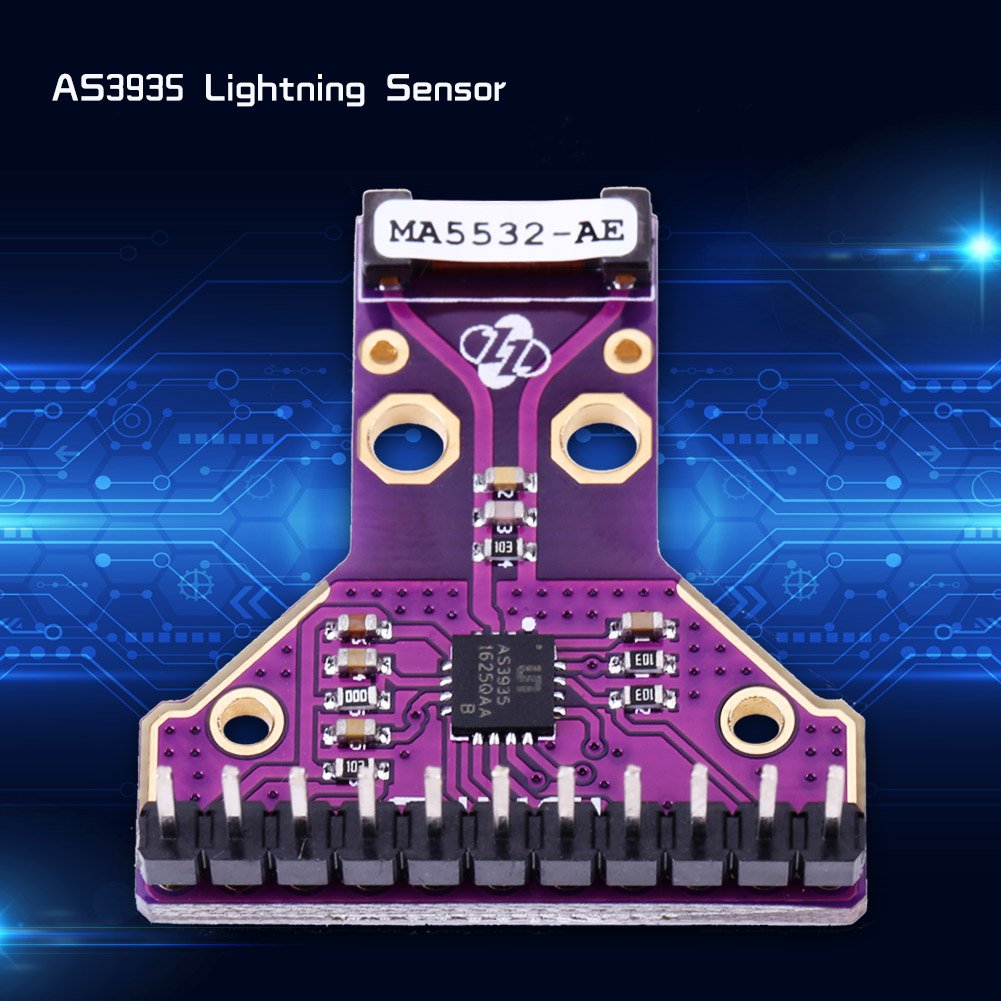

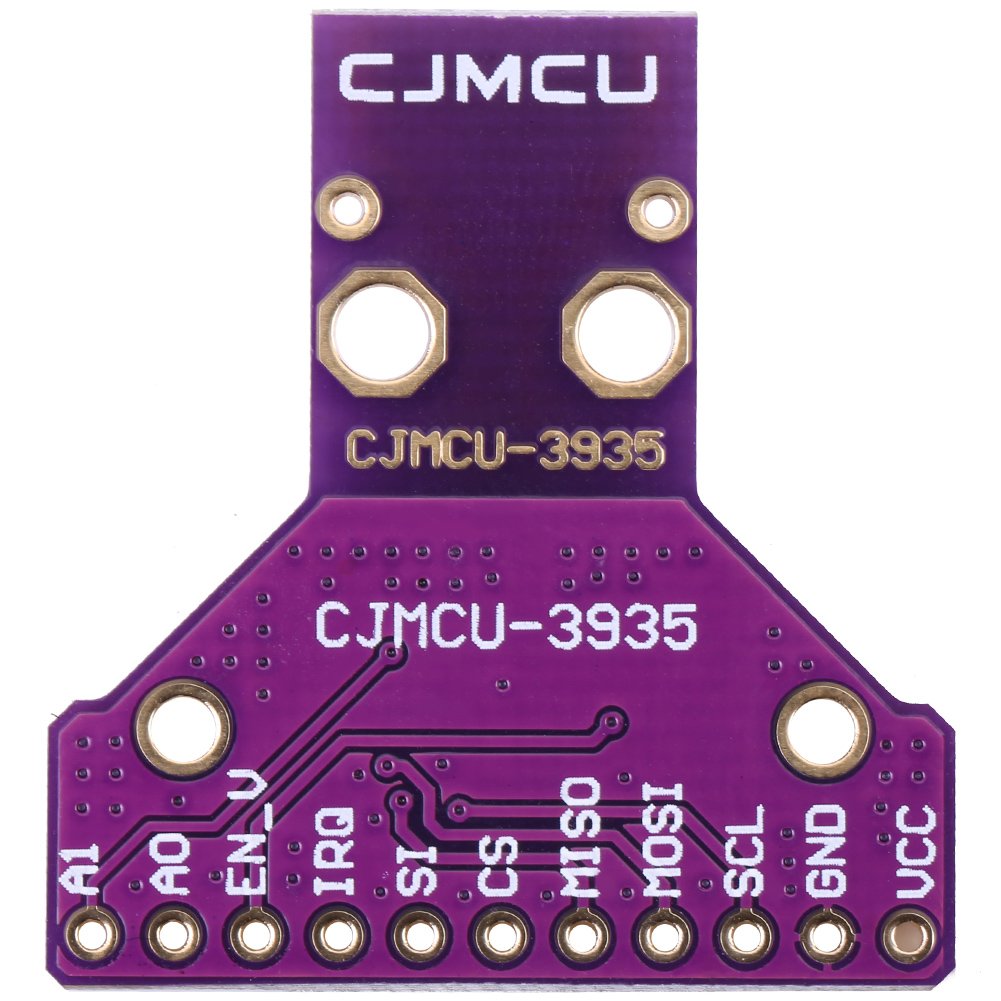

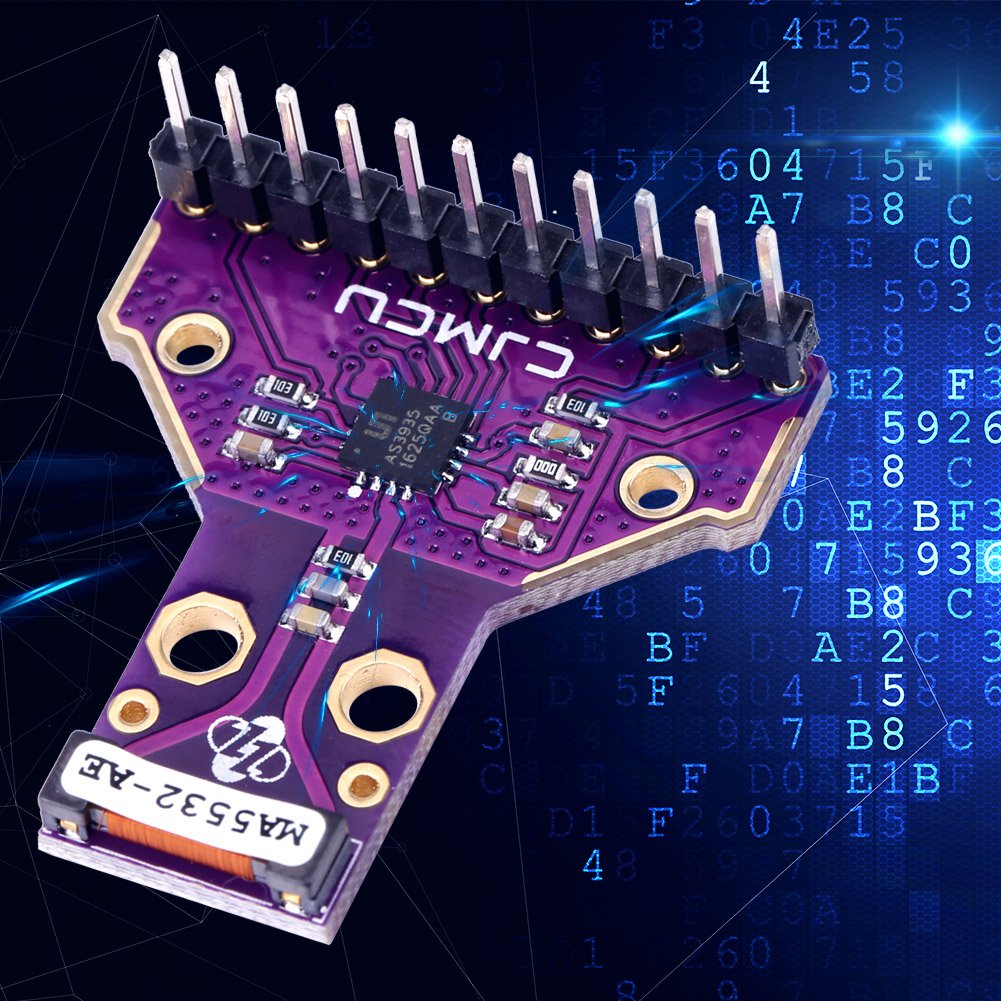

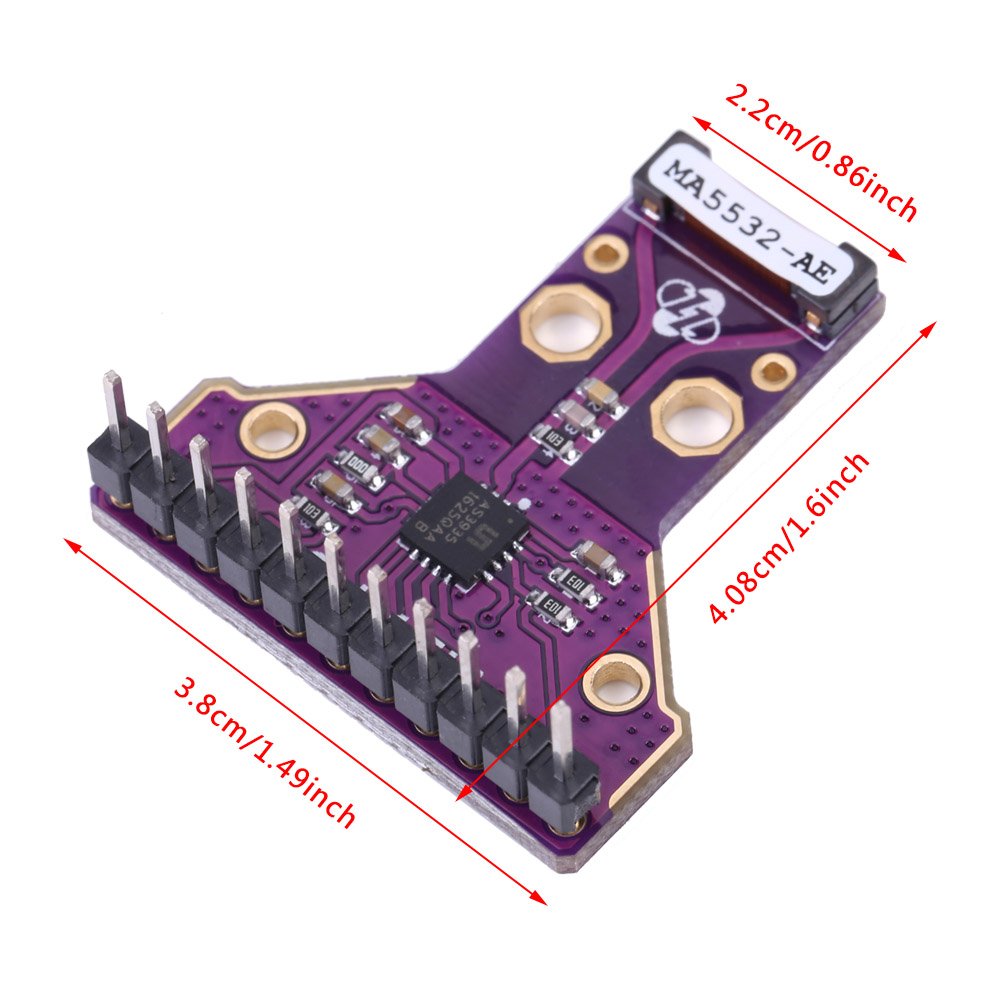

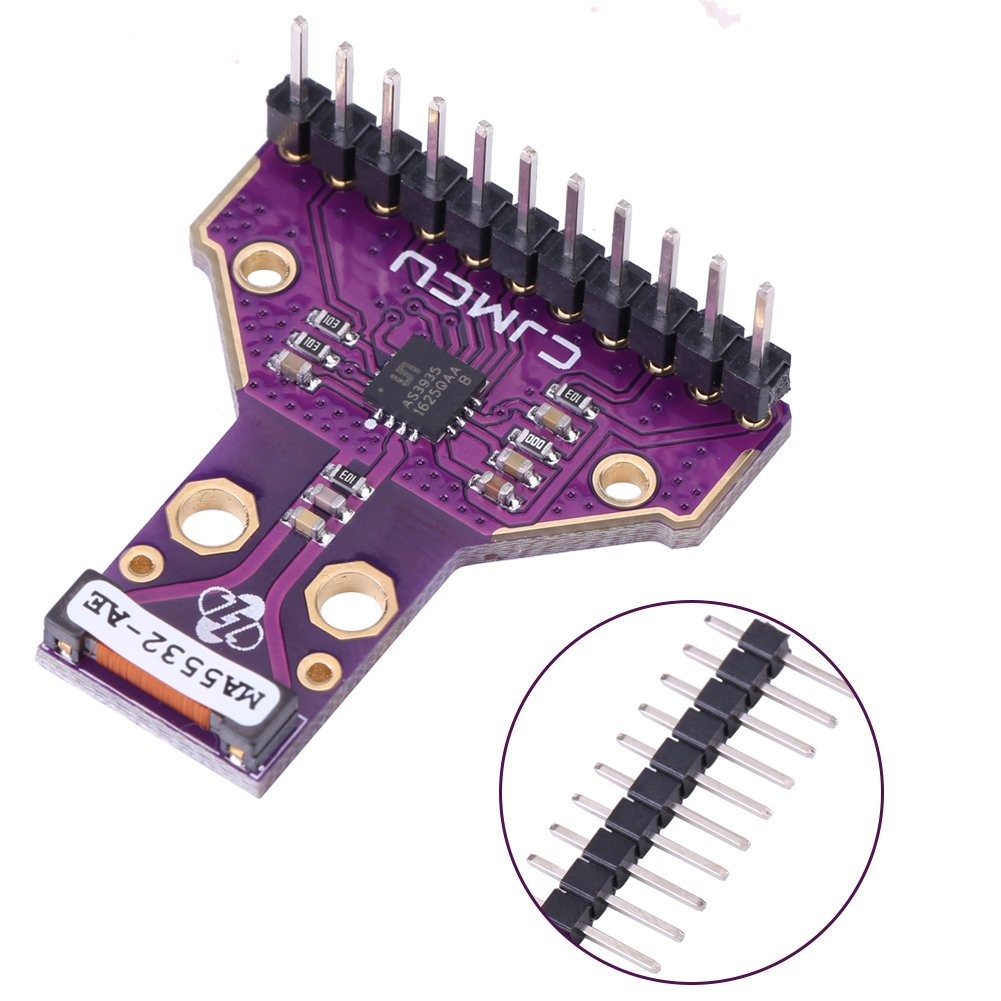

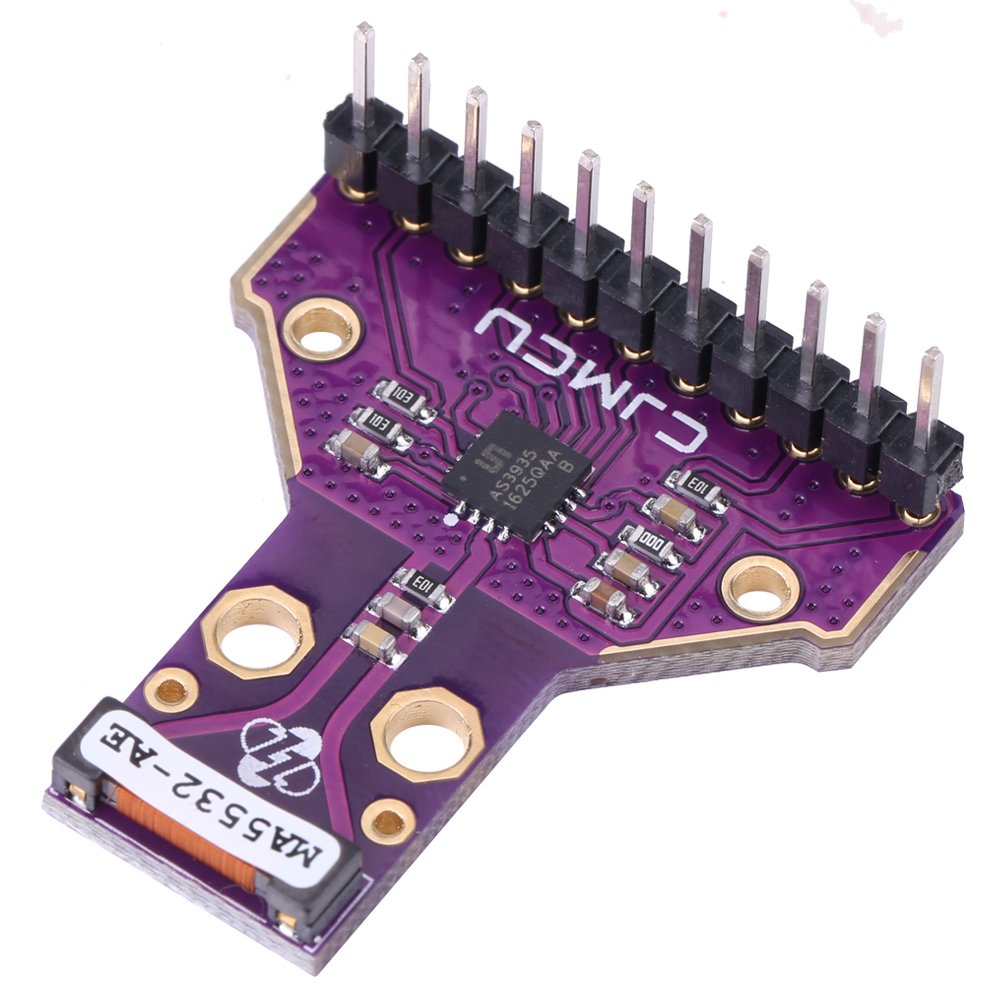

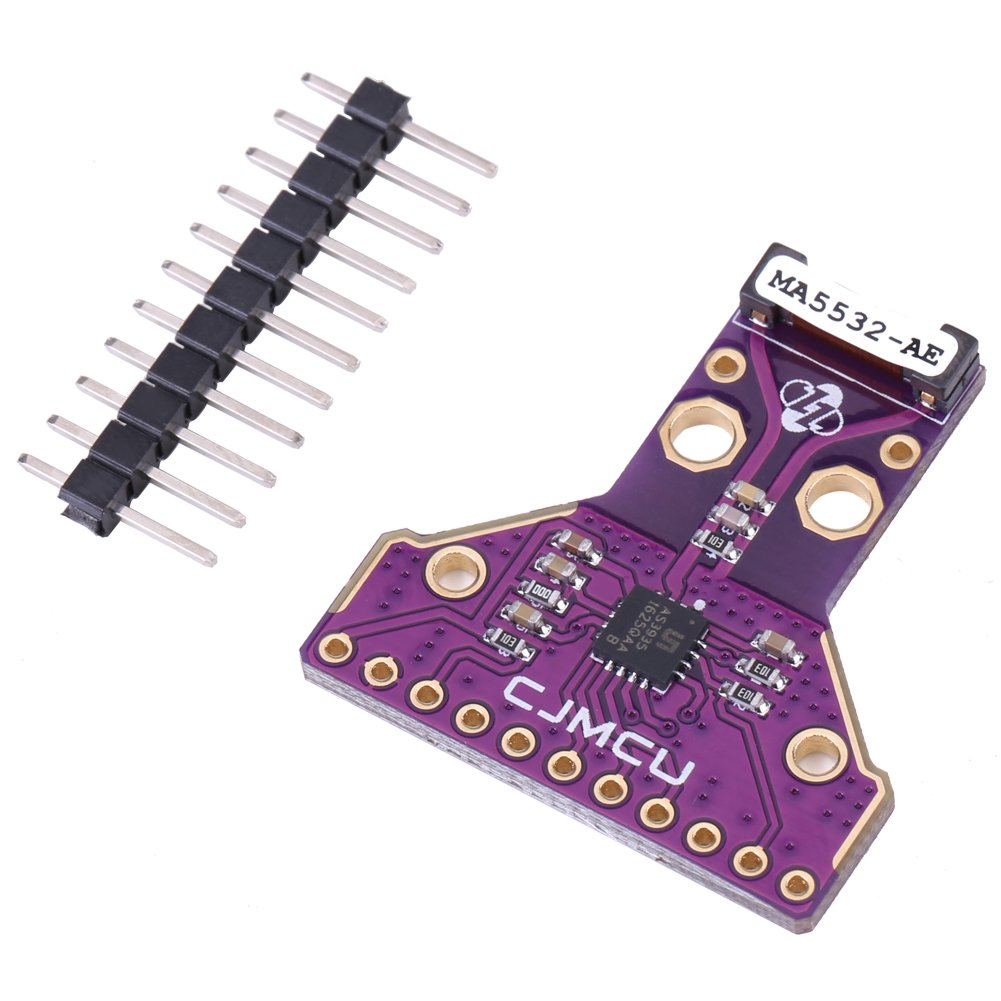

Description: Based on the AMS reference design, this is a breakout board for the AS3935 digital sensor. With a specially tuned antenna, SPI or I2C interfacing and a wide 2.4V to 5.5V standard operating range, this innovative sensor is designed to interface with most current development systems and boards. The breakout board features an inductor (antenna) specially designed for this application, This ensures that you don't have to write a massive back-end to support low-level IC calibration. Features: Detects both cloud-to-ground and cloud-to-cloud flashesEstimates distance to strikes between 1km and 40km in 14 stepsEmbedded "man made" disturbance rejection algorithmDetection thresholds are programmable (outdoor vs indoor, for example)Wide supply voltage range: 2.4V -5.5VSPI and I2C operation supported by default, I2C address 0x03Breakout board ships fully calibratedApplications:Weather stations,Sports electronic equipment,Cell phones,Smart watches,Golf equipment Package included: 1 x Sensor Specifications: Model: AS3935Voltage : 2.4V -5.5VSize: 3 x 2.5 x 1.2cm/1.2 x 1.0 x 0.5inchWeight: 4g
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
To get required sensitivity, the antenna must be tuned to 500kHz. I found that the combination of capacitors on the board (1089pF + 100pF) and the MA5532 coil would only reach to 476kHz. I had to manually change the SMD caps for a total value of 920pF (as opposed to original 1189pF). After this change things worked perfectly.So, if you have one of these boards, and find it insensitive, or can't tune the antenna, this is the problem.
